SIDE-MOUNTED & TOP-MOUNTED SERIES
LEDAER UHZ-11A
Magnetic Level Gauge | Versatile Installation for Surface & Underground Storage

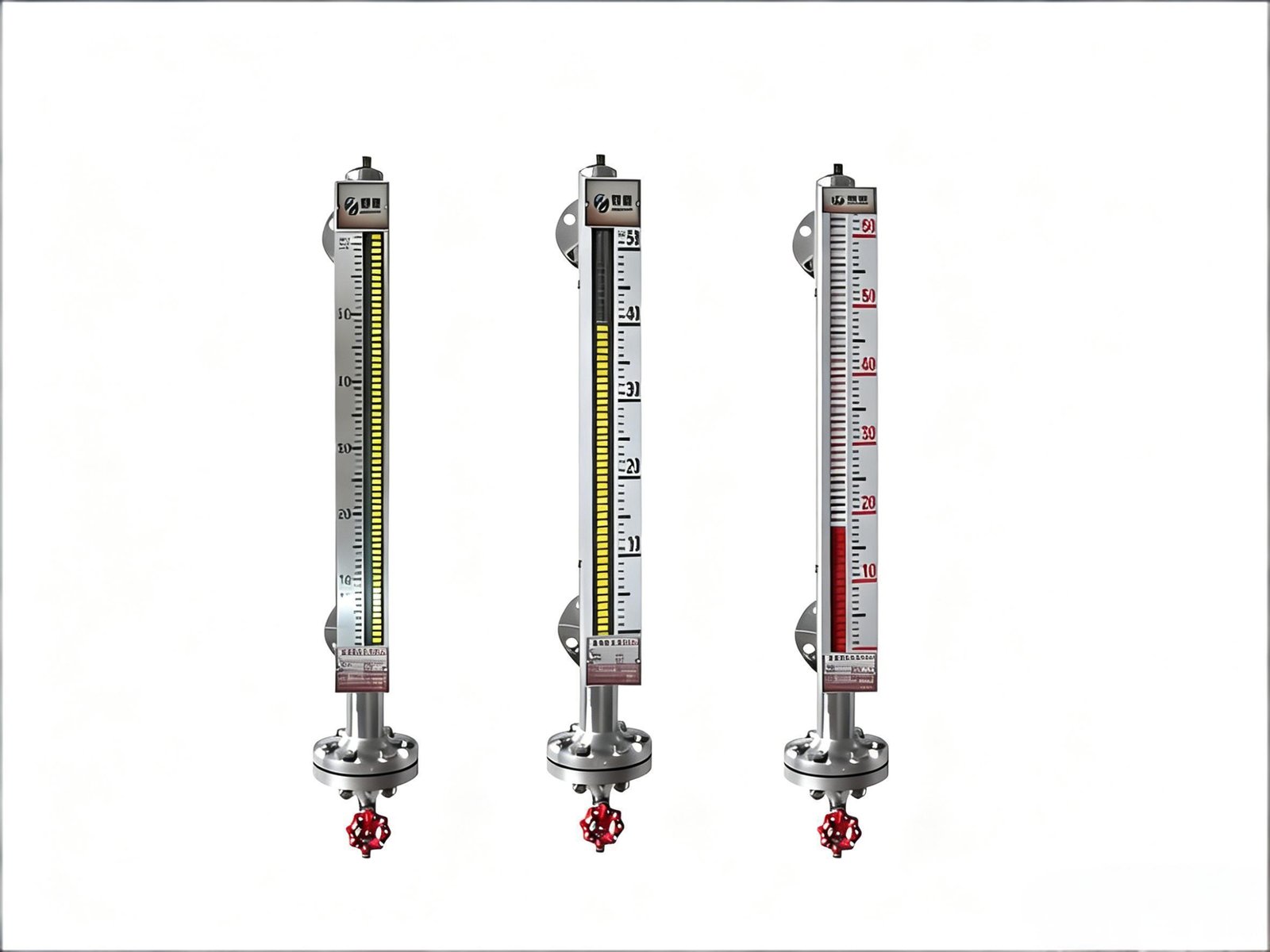

Side-Mounted (Basic Type)
The most common configuration. It connects to the side of the tank via two nozzles. It features a main measuring tube, a magnetic float, and a high-visibility indicator. Ideal for boilers, storage tanks, and reactors.
✔️ Leak-proof alternative to glass gauges
Top-Mounted Type
Specifically designed for tanks where side access is impossible (e.g., underground sumps or silos). It uses a vertical guide tube and a connecting rod system to transmit the float’s position to the indicator above the tank lid.
✔️ Custom guide tube lengths
📊 Technical Specifications
✨ Product Advantages
Versatile Installation
Covers both surface and underground storage requirements in one product family.
Dual-Indication Options
Choose between Magnetic Rollers (Red/White flip) or Magnetic Columns for the clearest visual distance.
Simple Maintenance
Equipped with a bottom drain valve (on side-mounted units) for easy cleaning and sediment removal.
Zero Power Required
Purely mechanical magnetic coupling ensures the level is visible even during total power outages.
🏭 Applications
🕳️ Underground Sumps & Pits
Top-mounted units ideal for monitoring water or oil levels in subsurface tanks.
🔥 Industrial Boilers
Robust, leak-proof alternative to fragile glass gauges.
🧪 Chemical Storage
Safe monitoring of acids, alkalis, and solvents in pressurized vessels.
⛽ Fuel & Oil Tanks
Clear visualization for inventory management in power plants and refineries.
Why Choose LEDAER?
Engineering Flexibility
Custom-tailored guide tubes and rod lengths to match your specific tank depth.
Robust Construction
High-quality stainless steel and specialized magnetic materials ensure the float never loses its coupling, even after years of service.
Rapid Delivery
Factory-direct supplier offering fast turnaround times for standard and custom-sized gauges.
Custom materials, measuring ranges, flanges, and output signals available. Contact our engineering team for your specific application.
