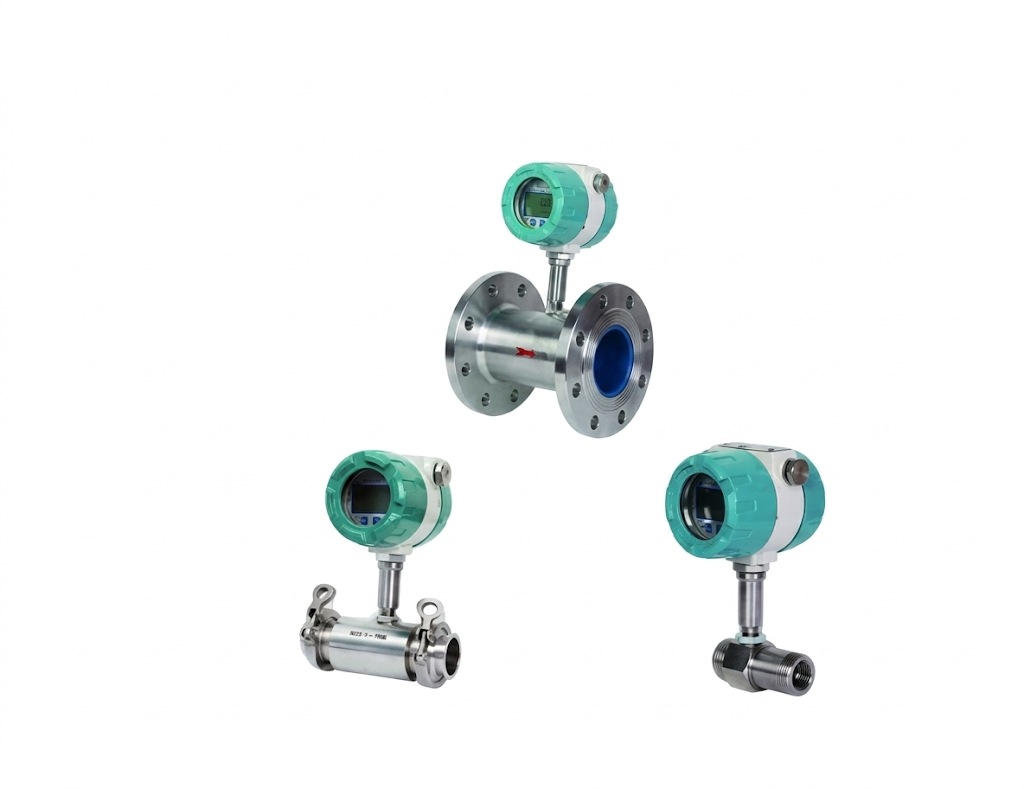

LEDAER LWGY Series
Liquid Turbine Flow Meter: High-Precision Measurement for Clean & Non-Conductive Fluids
📌 Overview
The Ledaer LWGY Series is a precision-engineered velocity flow meter designed for measuring the volume flow of low-viscosity, non-corrosive liquids. When fluid passes through the sensor, the kinetic energy drives the turbine rotor to rotate at a speed proportional to the flow velocity, providing highly accurate flow calculation and totalization.
✨ Key Advantages
Superior Precision
Standard accuracy of ±0.5% R or ±1.0% R, ideal for trade billing and process control.
Low-Temp Specialist
Robust performance in extreme cryogenic conditions, handling temperatures down to -200°C.
Non-Conductive Mastery
Excels in measuring non-conductive liquids like oils and alcohols where electromagnetic meters fail.
Wide Turndown Ratio
Standard 1:10 to 1:20 rangeability ensures accurate readings even at lower flow velocities.
📋 Technical Specifications
| Specification | Details |
|---|---|
| Nominal Diameter | DN4 – DN300 |
| Accuracy | ±0.5% R, ±1.0% R, ±2.5% R |
| Pressure Rating | Standard ≤ 4.0 MPa (Higher options available) |
| Medium Temp | -20°C to 150°C (Cryogenic options to -200°C) |
| Materials (Body/Impeller) | SS304/316L; Impeller in Stainless Steel / 2Cr13 / Duplex Steel |
| Signal Output | Pulse, 4–20mA, RS485, HART, GPRS |
| Ex-Rating | Exi II CT4-CT6 / Exdb II CT4-CT6Gb |
🏭 Ideal Applications
Precise tracking of gasoline, diesel, and light crude oil.
Purified water, deionized water, and soft water monitoring.
High-precision measurement for alcohol, solvents, and sanitary liquids.
Boiler feed water systems and light fuel oil tracking.
Why Choose LEDAER LWGY?
Our specialized materials enable stable operation down to -200°C for LNG and liquid nitrogen.
Converts rotation directly to high-gain electrical signals for fast-response totalization.
Available with tri-clamp connections and SS316L bodies for pharmaceutical and food grade apps.
Maximum Precision for Non-Conductive and Cryogenic Liquid Management.
