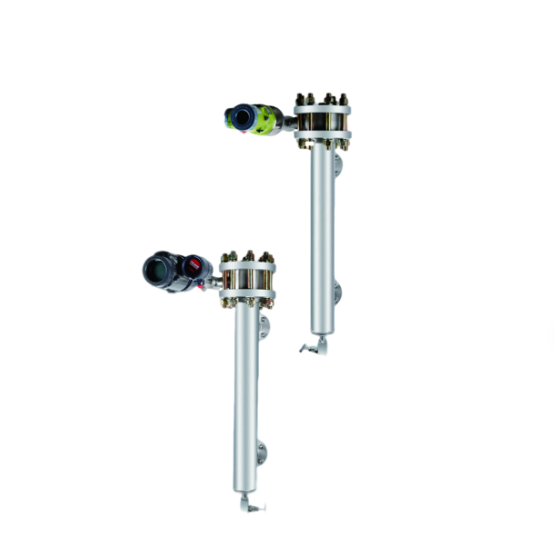

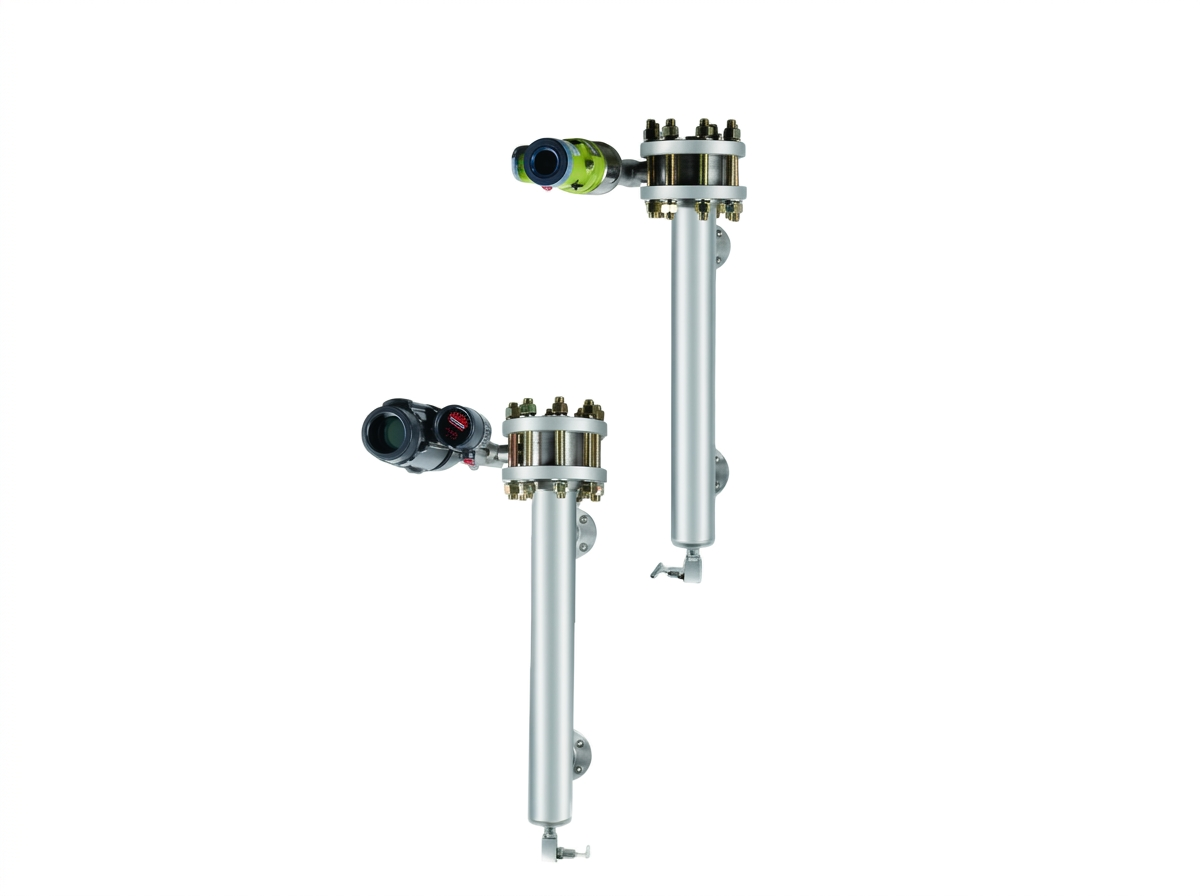

LEDAER UTD/UFD Series
Intelligent Displacement Level Transmitter: The Industry Standard for Extreme Industrial Environments
📌 Overview
The UTD/UFD Series is a precision instrument designed for the most demanding liquid level and interface measurements. Operating on Archimedes’ principle of buoyancy, it translates the change in buoyant force on a displacer into a high-accuracy electronic signal via a rugged torque tube system. This series is the industry standard for high-pressure vessels where extreme stability and reliability are non-negotiable.
✨ Key Features & Advantages
High-Precision Interface
Excels at tracking liquid-liquid interfaces (e.g., oil-water) with density differences as small as 0.08 g/cm³.
Extreme Pressure Rated
Standard models handle 6.3 MPa, with custom high-pressure versions reaching a massive 42 MPa.
Thermal Master
Reliably operates from cryogenic -196°C to superheated +450°C applications.
Durable Isolation
The torque tube design isolates the sensor from process media, ensuring a long, maintenance-free life.
📊 Technical Specifications
| Parameter | Value |
|---|---|
| Measuring Range | 300mm to 3000mm (Custom lengths available) |
| Accuracy | ±0.5% FS (Standard) / ±0.2% FS (High Precision) |
| Displacer Materials | SS304, SS316L, or Hastelloy |
| Torque Tube Materials | Inconel 600 or Monel |
| Communication Output | 4-20mA + HART, RS485 Modbus, Foundation Fieldbus (FF) |
| Explosion-Proof | Exia II CT4-CT6 / Exd II CT4-CT6 |
🏭 Ideal Applications
Oil-water separators, extraction towers, and flash tanks.
Feed-water heaters, deaerators, and boiler systems.
Interface control in decanters and pressurized storage spheres.
Level monitoring in production separators and scrubbers.
Why Choose LEDAER UTD/UFD?
Time-tested buoyancy principles combined with high-gain electronics for unrivaled accuracy.
Inconel 600 torque tubes and SS316L displacers provide maximum corrosion protection.
Side-mounted, top-mounted, or cage-mounted configurations ensure a perfect fit for any vessel.
Proven Performance for the World’s Most Critical Process Frontiers.
