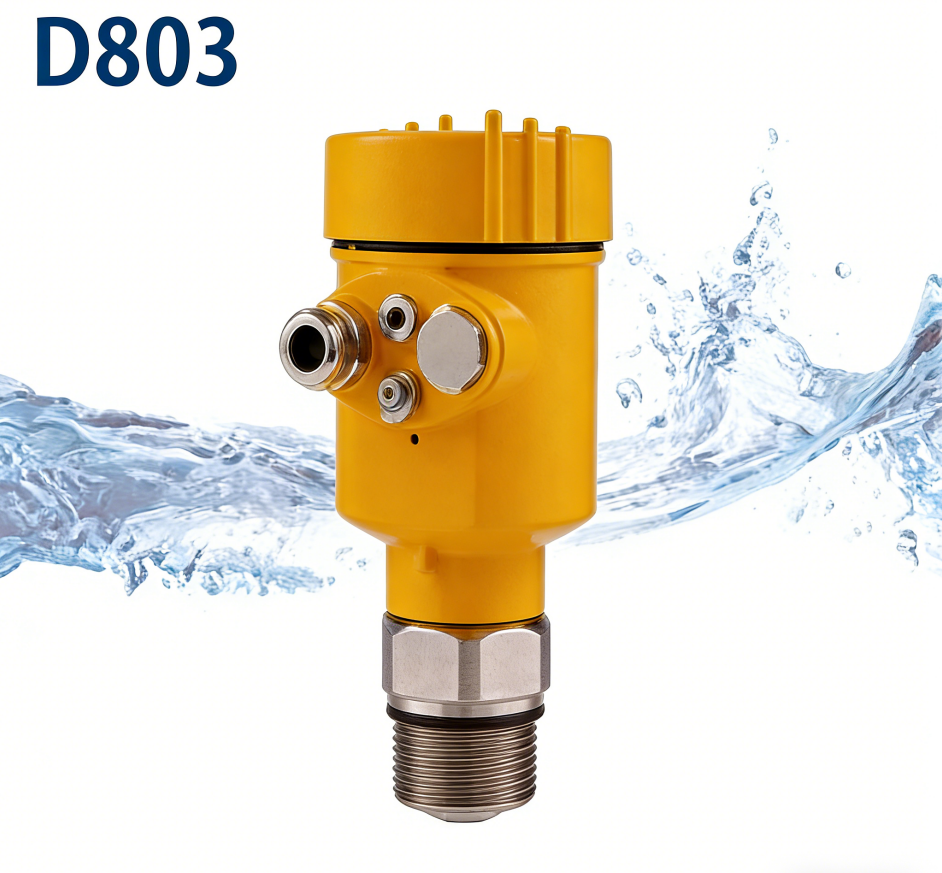

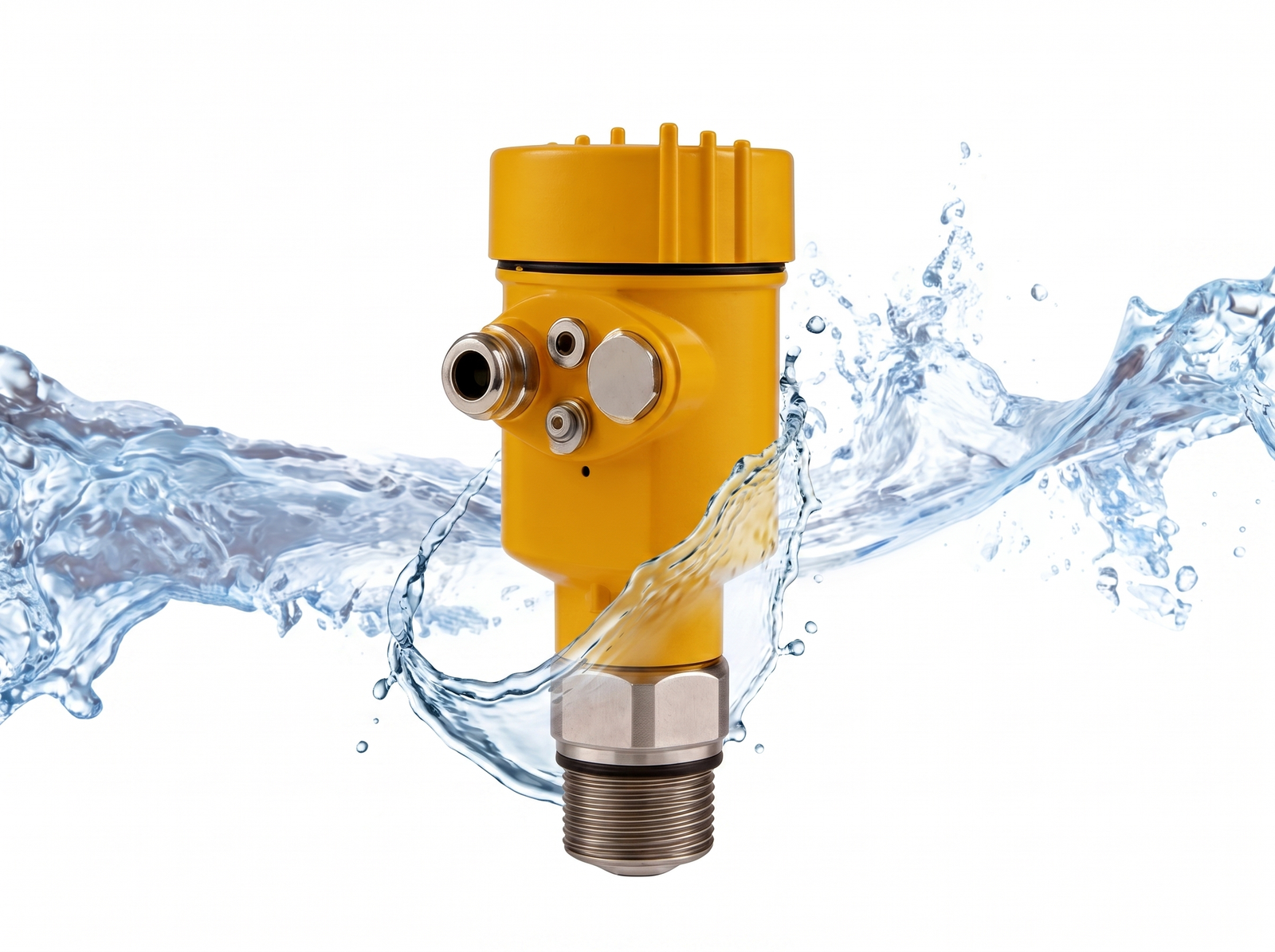

LEDAER D803
80GHz Compact Small Lens Radar: Precision Measurement for Space-Constrained Environments
📌 Brief Introduction
The ledaer Technology D803 is a compact 80GHz FMCW radar level sensor designed for precision measurement in space-constrained environments. Its small lens antenna allows for installation on small-diameter nozzles while maintaining the elite performance of 80GHz technology.
🔍 Product Details
Despite its compact form factor, the D803 delivers professional-grade accuracy and reliability. It is specifically optimized for small and medium-sized vessels where a standard large antenna won’t fit. By utilizing a 5GHz wide-bandwidth scan, it achieves higher resolution and a smaller blind spot, making it perfect for high-value liquids in smaller reaction tanks or dosing vessels.
📋 Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 76GHz – 81GHz |
| Measuring Range | 0 – 120m |
| Accuracy | ±1mm |
| Beam Angle | 8° (Small Lens Optimized) |
| Process Temp | -40°C to 220°C |
| Pressure Range | -0.3 to 2.0 MPa |
| Connection | Bracket or Small Flange (Customizable) |
| Output | 4-20mA / HART / RS485 Modbus |
✨ Product Advantages
Space-Saving Design
Small lens diameter allows installation on narrow nozzles and tight spaces where larger units cannot fit.
Superior Resolution
High-frequency 80G technology provides a clearer reflection even in small pharmaceutical or chemical tanks.
Non-Contact Precision
Measures through steam and foam without touching the media, reducing cross-contamination risks.
Easy Mobile Setup
Built-in Bluetooth for quick smartphone configuration, eliminating bulky programmers in cramped quarters.
🏭 Application Scenarios
Ideal for pilot plants and laboratory-scale fermentation vats.
Precise level control for additive tanks in water treatment or food production.
Compact enough to be integrated into modular pharmaceutical equipment.
Monitoring ingredients in cosmetics and detergent production lines.
Why Choose LEDAER?
We have mastered the balance between a small physical footprint and high-gain signal performance.
Our team helps select the right mounting to ensure the 8° beam angle fits your tank’s geometry perfectly.
Built with industrial-grade materials to ensure a long service life with zero maintenance.
High Precision for Small Vessels.
