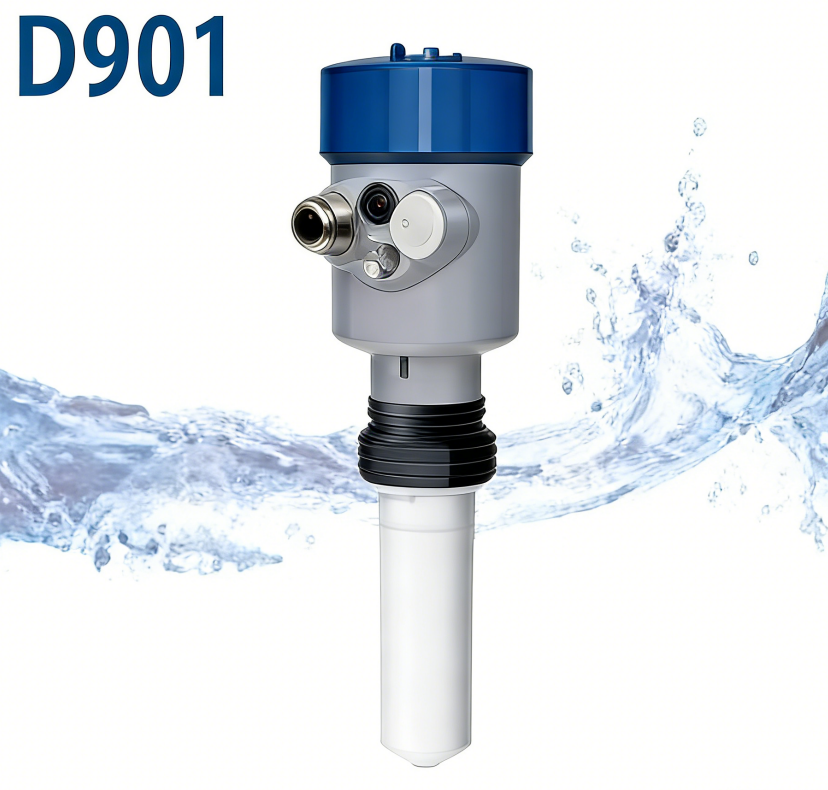

LEDAER D901
26GHz Economy Liquid Level Type: Top Cost-Effectiveness Choice for Standard Operating Conditions
📌 Brief Introduction
The LEDAER D901 is a reliable 26GHz high-frequency radar level transmitter designed for general liquid level measurement[cite: 53]. It offers a perfect balance of performance and affordability, making it the ideal choice for water treatment and mild corrosive liquid storage[cite: 54].
🔍 Product Details
The D901 operates on 26GHz microwave pulse technology, providing a smaller antenna size and easier installation compared to lower frequency radars[cite: 56]. It is virtually unaffected by changes in temperature, pressure, or the presence of vapors[cite: 57]. Its non-contact measurement ensures no wear and tear, providing a long-term maintenance-free solution for various tanks.
📋 Technical Specifications
| Parameter | Value |
|---|---|
| Brand | LEDAER [cite: 60] |
| Frequency | 26GHz [cite: 61] |
| Measuring Range | 0 – 10m (Optimized for small/mid tanks) |
| Accuracy | ±3mm [cite: 63] |
| Process Temp | -40°C to 130°C [cite: 64] |
| Pressure Range | -0.1 to 0.3 MPa [cite: 65] |
| Connection | Thread or Flange (Optional) [cite: 66] |
| Output | 4-20mA / HART / RS485 Modbus [cite: 68] |
| Protection Grade | IP67 / Exia II CT6 Ga (Optional) [cite: 67] |
✨ Product Advantages
Cost-Effective Efficiency
High-frequency precision at a price point suitable for large-scale deployments[cite: 70].
Compact Antenna
Small size allows easy mounting through threaded ports or small flanges[cite: 71].
Environment Resistance
Unaffected by dust, foam, or atmospheric vapors in indoor/outdoor settings.
Simplified Setup
User-friendly configuration allows for rapid commissioning across tank types[cite: 73].
🏭 Application Scenarios
Reservoirs, pump stations, and chemical dosing tanks[cite: 75].
Ideal for fuel oil, lubricants, and mild chemical storage[cite: 76].
Monitoring coolant or secondary water in large cooling towers[cite: 77].
Adapted for level monitoring in weir and flume systems[cite: 78].
Why Choose LEDAER?
LEDAER’s 26G series is built for rigorous use with high signal-to-noise ratios[cite: 80].
We help you match the right antenna and connection for your tank geometry[cite: 81].
Every unit is calibrated to ensure ±3mm accuracy standard before shipping[cite: 82].
Precision Measurement for Standard Industrial Needs.
