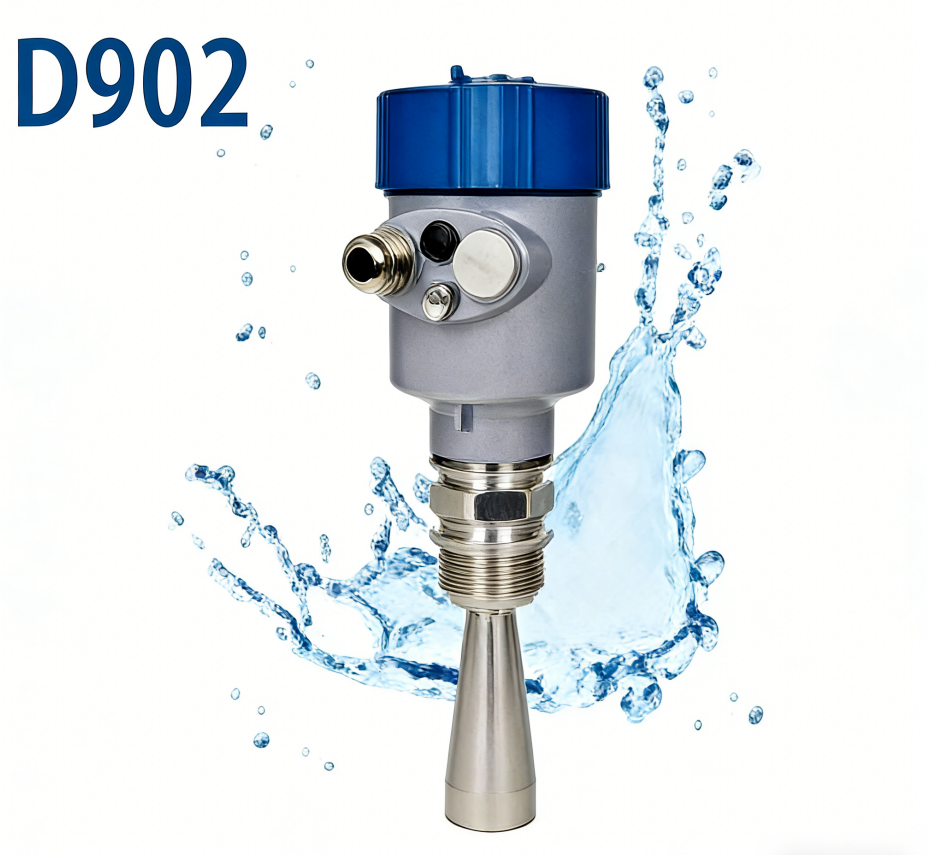

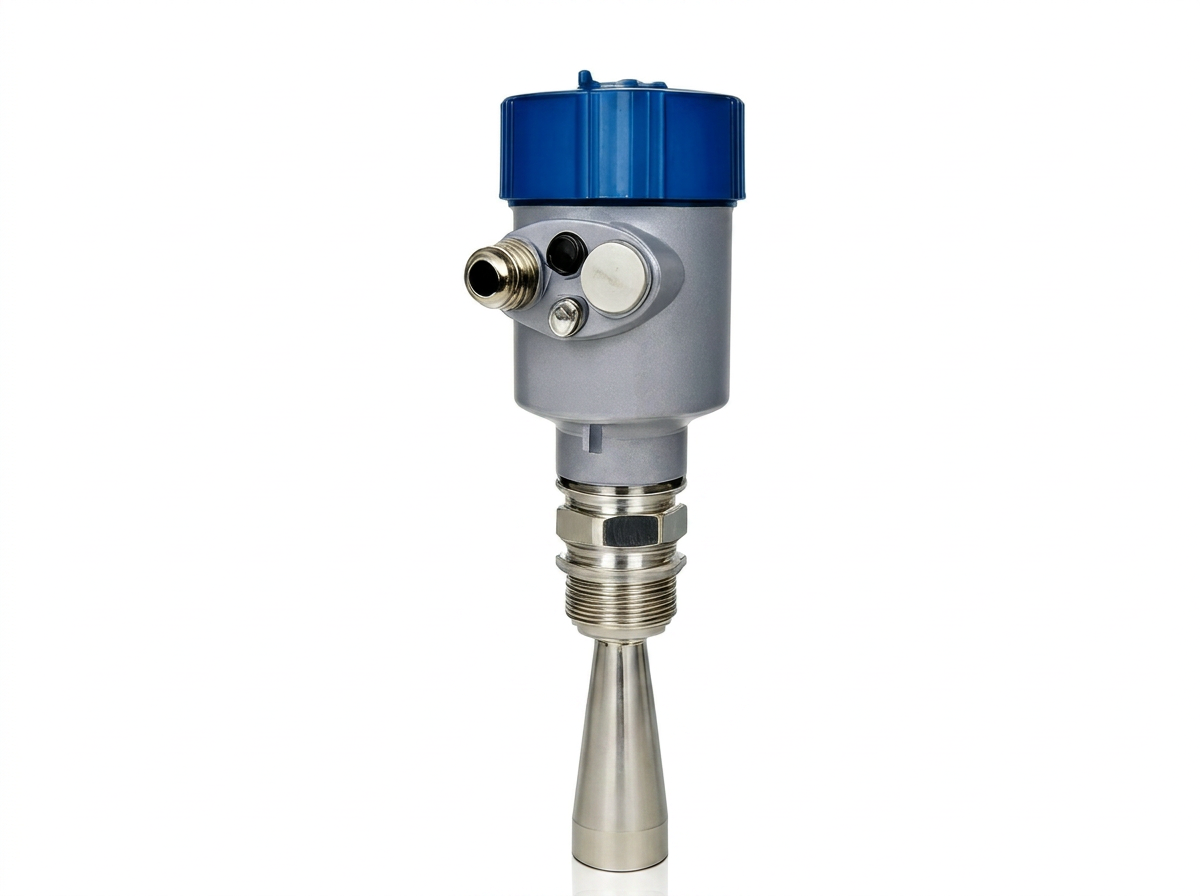

LEDAER D902
26GHz Radar Level Transmitter: Engineered for Demanding High-Temperature & Pressure Environments
📌 Brief Introduction
The LEDAER D902 is a robust 26GHz high-frequency radar level transmitter specifically designed for demanding industrial environments involving high temperatures and significant process pressure. With a measuring range of up to 30 meters, it provides stable and accurate non-contact level sensing for complex liquid storage.
🔍 Product Details
The D902 utilizes high-frequency microwave pulses that are virtually unaffected by atmospheric conditions within the tank. Its upgraded structural integrity allows it to operate reliably under pressures up to 4.0 MPa and temperatures up to 250°C. The narrow beam angle and high signal-to-noise ratio make it particularly effective for measuring liquids with low dielectric constants or in tanks with mild turbulence.
📋 Technical Specifications
| Parameter | Value |
|---|---|
| Brand | LEDAER |
| Frequency | 26GHz |
| Measuring Range | 0 – 30m |
| Accuracy | ±3mm |
| Process Temp | -40°C to 250°C |
| Pressure Range | -0.1 to 4.0 MPa |
| Process Connection | Flange (Customizable) |
| Output | 4-20mA / HART (2/4-wire), RS485 / Modbus |
| Protection Grade | IP67 / Exia II CT6 Ga (Optional) |
✨ Product Advantages
Enhanced Durability
Withstands extreme temperature fluctuations and high-pressure cycles without compromising sensor life.
Extended Range
A 30-meter capability makes it suitable for taller industrial silos and reaction vessels.
Non-Contact Safety
Eliminates corrosion and mechanical wear, significantly reducing long-term maintenance costs.
Versatile Output
Fully compatible with modern PLC and DCS systems via HART or Modbus protocols.
🏭 Application Scenarios
Monitoring fuel tanks, lubricants, and oil-water separators.
Level measurement in reaction kettles and high-pressure storage tanks.
Monitoring of boiler feed water and other high-temperature process liquids.
Ideal for viscous liquids that require high-heat storage to maintain flow.
Why Choose LEDAER?
Built with high-grade materials to ensure structural integrity under the most volatile process conditions.
Each unit undergoes pressure-sealed testing and thermal calibration to guarantee field performance.
Comprehensive support to help calculate optimal installation positions for maximum signal return.
Stability and Accuracy in Extreme Industrial Frontiers.
