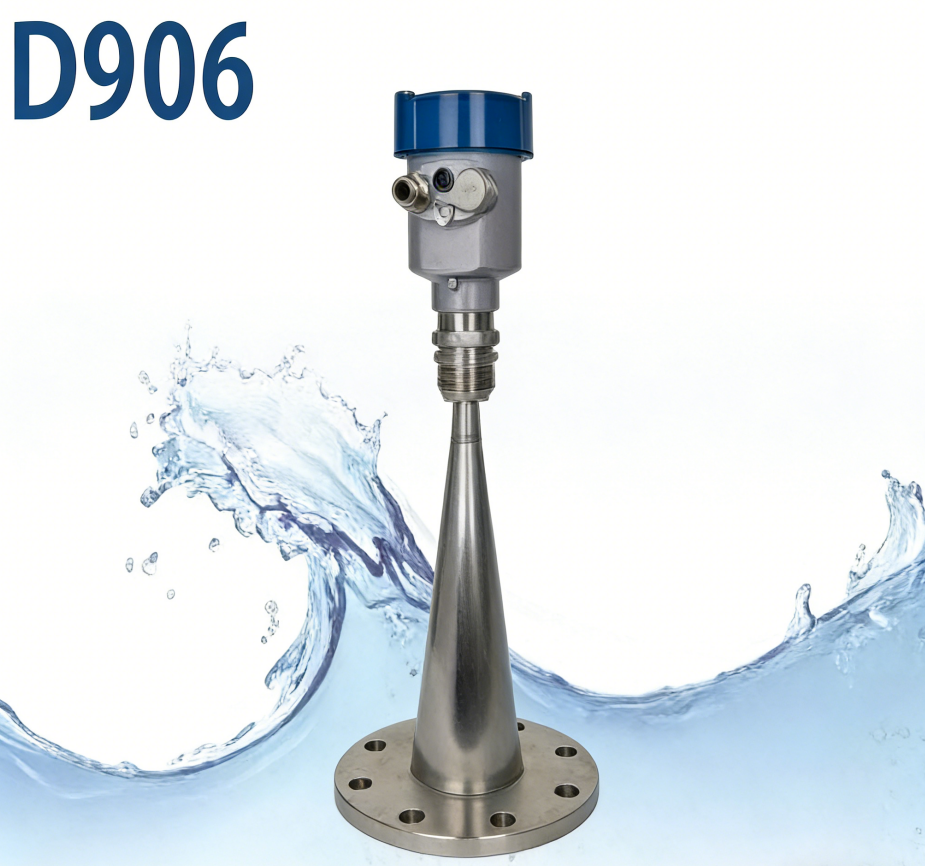

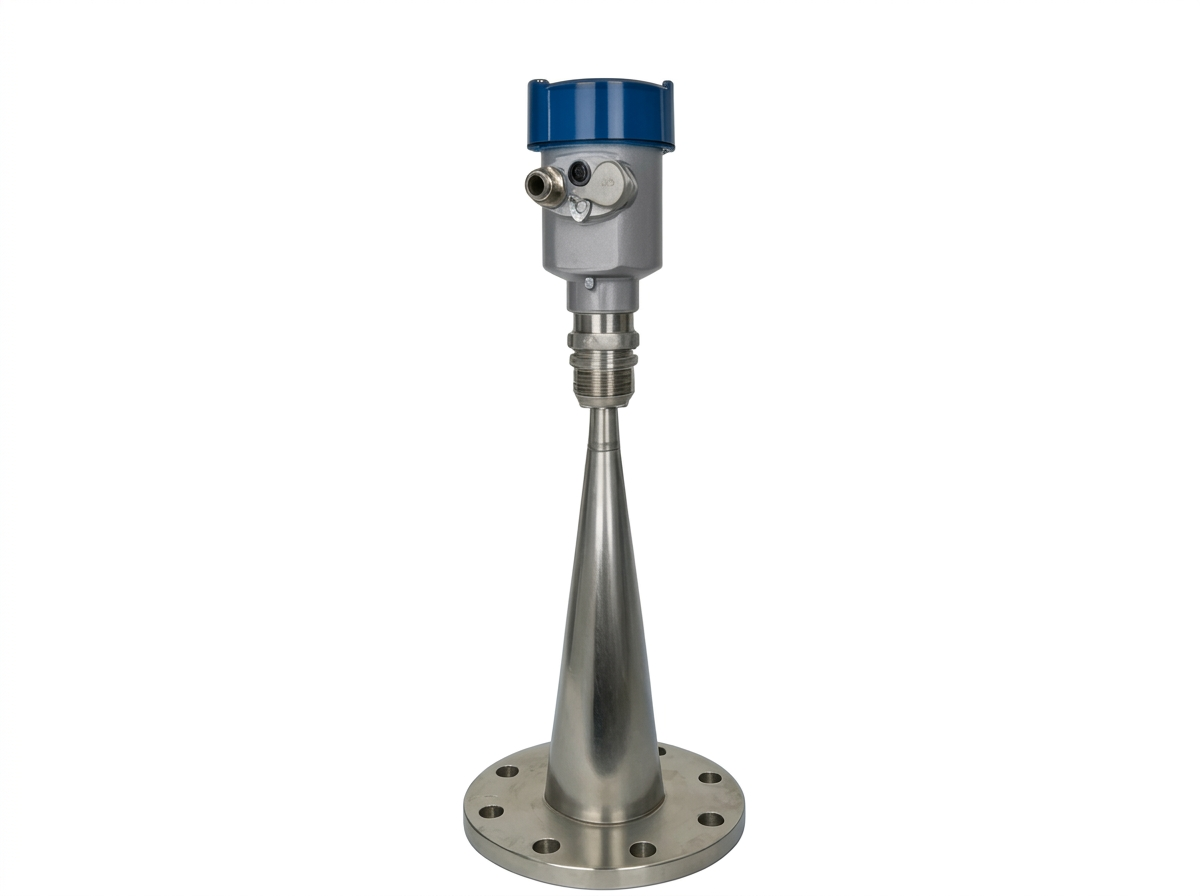

LEDAER D906
26GHz Sanitary & Anti-Corrosive Radar Level Transmitter: Contamination-Free Precision for High-Purity Environments
📌 Brief Introduction
The LEDAER D906 is a high-precision 26GHz radar level transmitter designed specifically for sanitary applications and highly corrosive environments. Featuring a protected antenna design, it ensures contamination-free measurement for food, beverages, and aggressive chemicals[cite: 213].
🔍 Product Details
The D906 is engineered to meet the strict hygiene requirements of the food and pharmaceutical industries[cite: 215]. Its antenna is shielded to prevent material buildup and ensure easy cleaning, making it fully CIP/SIP compatible. For chemical applications, the protective layer provides an impenetrable barrier against strong acids and alkalis, ensuring that the 26GHz signal remains accurate without the risk of sensor degradation[cite: 217].
📋 Technical Specifications
| Parameter | Value |
|---|---|
| Brand | LEDAER [cite: 219] |
| Frequency | 26GHz [cite: 220] |
| Measuring Range | 0 – 20m [cite: 221] |
| Accuracy | $\pm 3\text{mm}$ [cite: 222] |
| Process Temp | -40°C to 130°C [cite: 223] |
| Pressure Range | -0.1 to 0.5 MPa [cite: 224] |
| Process Connection | Flange (Sanitary/Customizable) [cite: 225] |
| Output | 4-20mA / HART / RS485 Modbus [cite: 227] |
✨ Product Advantages
Hygienic Design
The antenna avoids “dead corners,” preventing bacterial growth and making it ideal for food-grade storage.
Corrosion Resistance
A specialized protective housing allows the sensor to operate near aggressive vapors and corrosive liquids[cite: 230].
Non-Contact Purity
Measures levels without touching the medium, eliminating cross-contamination or sensor wear[cite: 231].
Stable in Steam
High-frequency pulses are optimized to penetrate steam and condensation common in sterilization.
🏭 Application Scenarios
Monitoring milk, juice, and soft drink tanks during processing and storage[cite: 234].
Precision level control for high-purity water, reagents, and medicine vats[cite: 235].
Measuring levels of sulfuric acid, hydrochloric acid, and aggressive reagents[cite: 236].
Ideal for mixing tanks containing perfumes, lotions, and soaps[cite: 237].
Why Choose LEDAER?
LEDAER uses only the highest-grade sanitary and anti-corrosive materials for safety and compliance[cite: 239].
We customize mounting and protection based on your specific CIP (Clean-In-Place) requirements[cite: 240].
Our 26G sanitary series is trusted worldwide for its long-term stability and ease of maintenance[cite: 241].
Maximum Hygiene and Chemical Resistance for Your Process.
