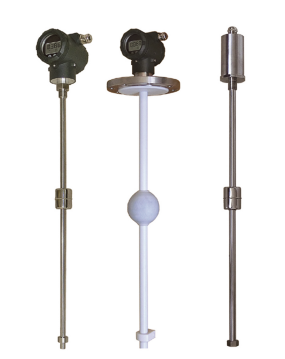

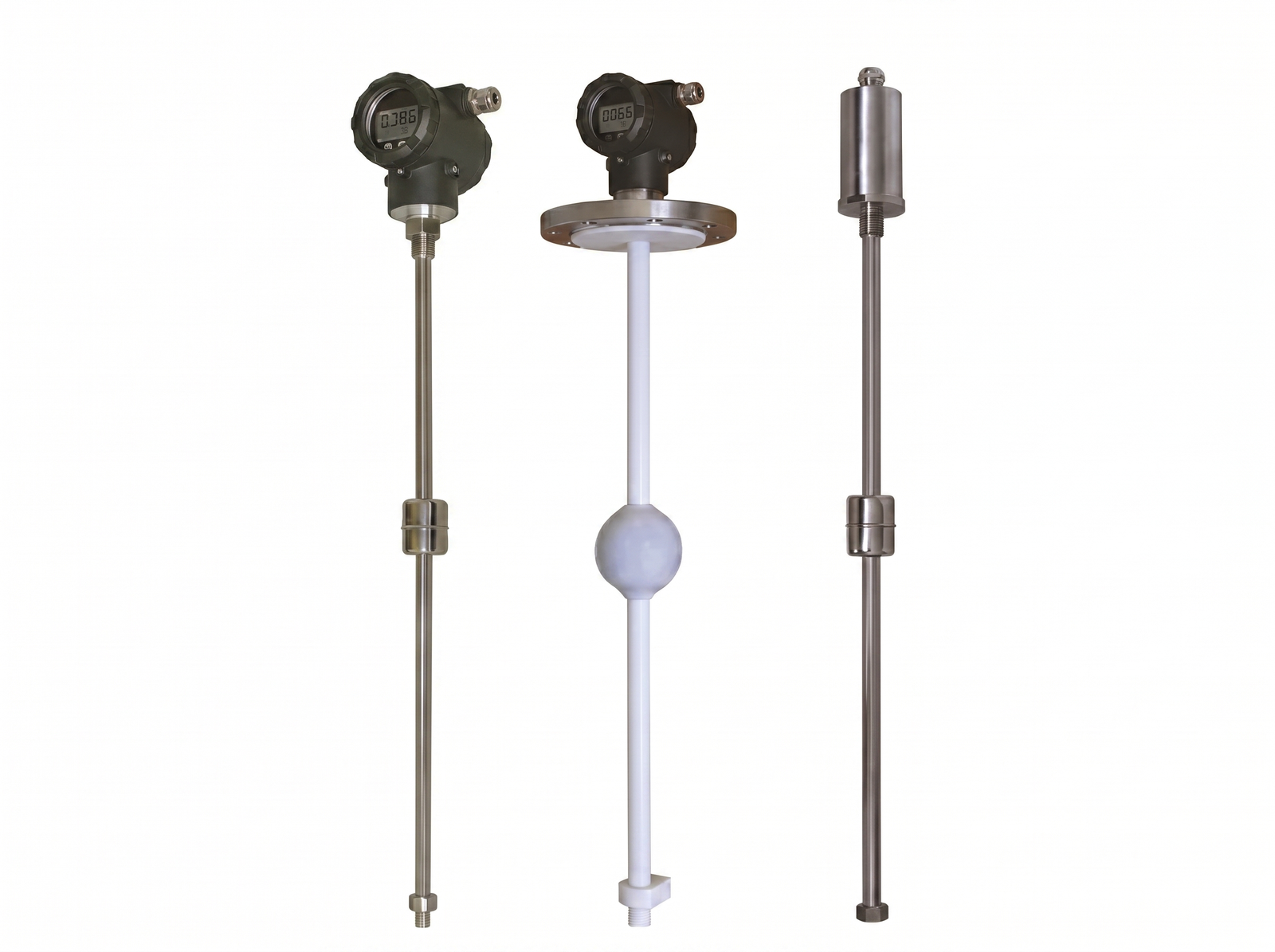

LEDAER UCZ Series (Rigid Rod)
High-Precision Magnetostrictive Level Transmitter: Unmatched Precision for Level & Interface Measurement
📌 Overview
The UCZ Series rigid rod magnetostrictive level transmitter is engineered for high-accuracy liquid level and interface measurement[cite: 331, 333]. Utilizing the Wiedemann effect, this sensor provides a non-contact, maintenance-free solution that is unaffected by the dielectric constant, pressure, or temperature of the medium[cite: 334]. Whether for high-value chemical storage or precise process control, the UCZ series delivers reliable ±1mm precision[cite: 335].
⚙️ Technical Features
Capable of measuring both Liquid Level and Interface Level (e.g., oil-water interface) simultaneously with a single probe[cite: 337].

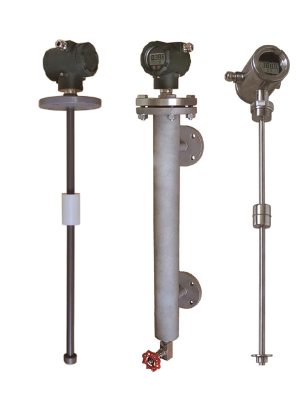

Available in Single-Chamber and Double-Chamber configurations to suit different signal isolation requirements[cite: 338].
Enclosed in stainless steel (304/316L) or PTFE-lined probes, making it immune to harsh, corrosive environments[cite: 339].
Standard 4-20mA signal with HART Protocol, supporting remote calibration and advanced diagnostics[cite: 340].
📊 Key Specifications
| Parameter | Value |
|---|---|
| Measuring Range | 0.1m to 6m (Rigid Rod) [cite: 342] |
| Precision | ±1mm or 0.01% F.S. [cite: 343] |
| Resolution | Better than 0.1mm [cite: 344] |
| Process Pressure | ≤ 10 MPa [cite: 345] |
| Process Temperature | -40°C to 300°C [cite: 346] |
| Materials | SS304, SS316L, PTFE-Lined, Hastelloy, Titanium [cite: 347] |
🏭 Typical Applications
Precision fuel and oil inventory management with interface tracking[cite: 354].
Precise dosing and reaction monitoring in high-pressure vessels[cite: 355].
Sanitary level tracking for high-purity ingredients and sterile processes[cite: 356].
Accurate water level control for auxiliary tanks and feed systems[cite: 357].
Why Choose LEDAER UCZ?
The internal waveguide never touches the liquid, ensuring zero wear and a 10-year service life[cite: 350].
Ideal for liquids with low dielectric constants where traditional radar might struggle[cite: 351].
Fully compliant with Exia and Exd explosion-proof standards for hazardous zones[cite: 348].
Unmatched 0.1mm Resolution for Critical Process Integrity.
