LEDAER UHZ-11A: High-Performance Magnetic Level Gauge



Universal Solution for Extreme Industrial Environments

分类：

MAGNETIC LEVEL GAUGE

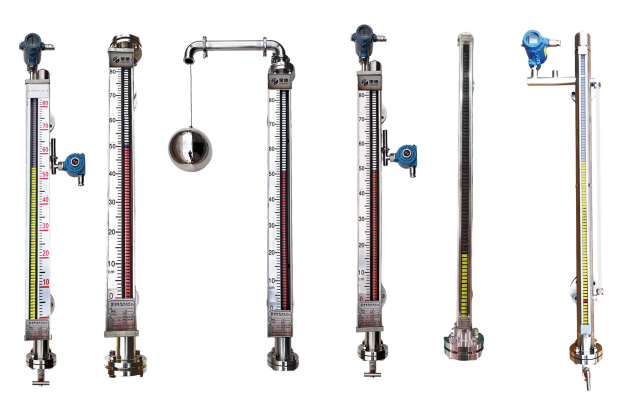

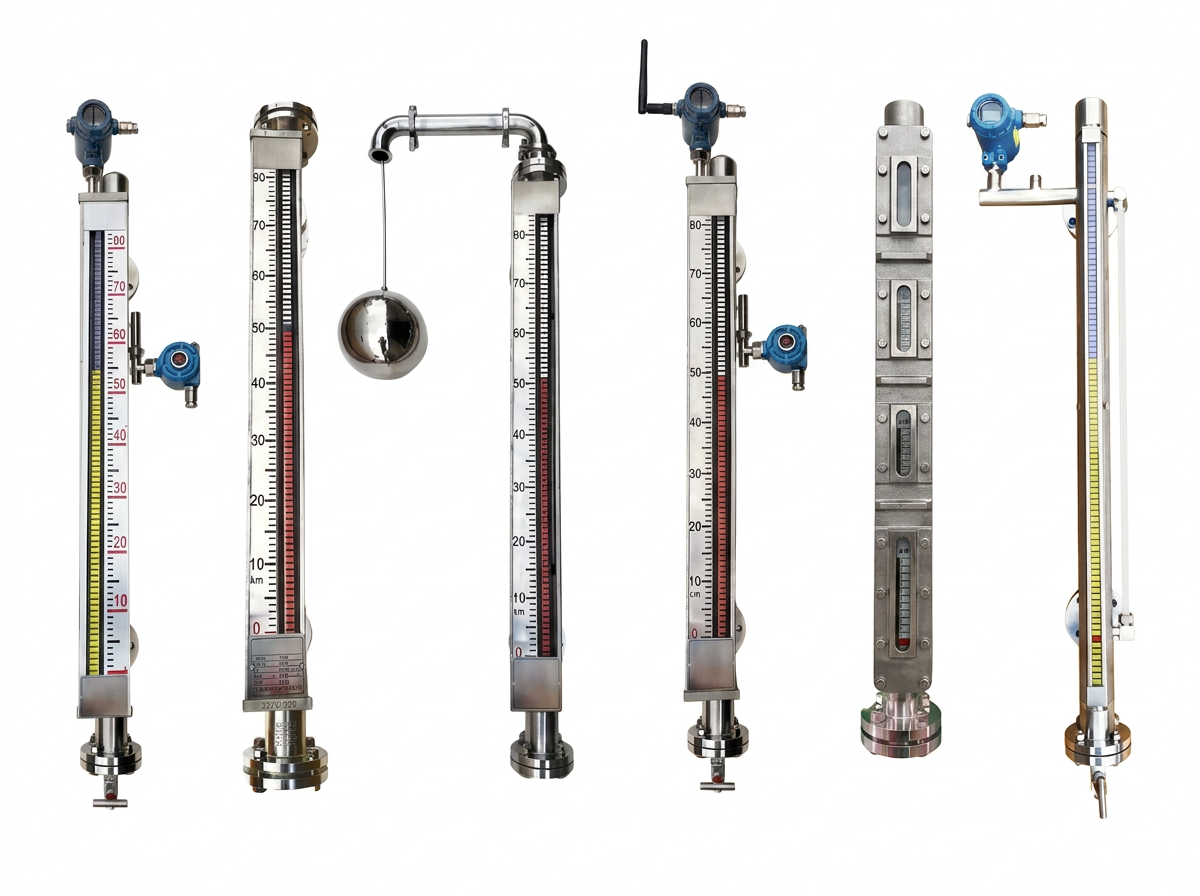

LEDAER UHZ-11A

Industrial-Grade Magnetic Level Gauge | Built for Extreme Precision & Safety

📌 Brief Introduction

The LEDAER UHZ-11A is an industrial-grade magnetic level gauge built for precision and safety. Unlike standard visual indicators, it performs reliably in extreme conditions: cryogenic temperatures down to -196°C, ultra-high temperatures up to 550°C, and max pressure of 32MPa. It offers a visible, leak-proof solution for liquid level monitoring in the global energy and chemical industries.

🔧 Product Details

This gauge features a fully isolated design, separating the indicating scale from process media to ensure safety when handling flammable, toxic or corrosive liquids. Its modular design supports integration of high/low alarm switches and 4-20mA/HART transmitters, upgrading a visual gauge to a complete intelligent level control system.

✅ Key Integration Options:

  • High/Low Alarm Switches (reed switches, magnetic switches)
  • 4-20mA / HART / RS485 Transmitters
  • Foundation Fieldbus & Profibus PA
  • Steam jacket heating for viscous media

⭐ Key Advantages

🌡️ Extreme Environment Resistant: Stable for high-pressure steam, liquefied gases and corrosive media, no fogging or leakage.
🔒 Isolated Safety Design: Indicator separated from medium, preventing leaks even if display glass is damaged.
❄️ Anti-Frost & Anti-Condensation: Optimized for cryogenic use, avoids ice buildup and display fogging.
🔧 Maintenance-Free: Simple mechanical structure, minimal downtime and maintenance costs.

📋 Technical Specifications

Body Materials: SS304, SS316L, SS304/316+PTFE, PP, CPVC, Tantalum, Hastelloy, PFA
Measuring Range: 300mm – 20,000mm
Accuracy: ±5mm (standard) / ±10mm
Max Pressure: ≤ 32MPa
Medium Density: ≥ 0.42 g/cm³
Temperature Range: -196°C to +550°C
Output Signals: 4-20mA, HART, RS485, Foundation Fieldbus, Profibus PA
Protection/Explosion-proof: IP65-IP68 / ExiaII CT4-CT6, ExdII CT4-CT6Gb
Process Connections: Flange (customizable), threaded, sanitary tri-clamp
Optional Features: Steam jacket, insulation, wireless transmission, high-pressure design

🏭 Applications & Industries

Power & Energy
Pressure heaters, deaerators, steam drums
Chemical & Petrochemical
Methanol, urea, ethylene oxide, benzene
Fine Chemicals & Silicons
Polymers, resins, organic silicon control
Cryogenic Scenarios
LNG, liquid nitrogen storage monitoring
Food & Pharma
Sanitary sterile level monitoring

Why Choose LEDAER?

🛡️

Exclusive High-Performance Materials

Hastelloy, Tantalum, PTFE/PFA – most peers cannot provide.

📏

Rigorous Standards

Resists thermal shocks and pressure surges for long-term stability.

⚙️

One-Stop Customization

Steam jacket heating, wireless transmission, special coatings, custom flanges.

LEDAER UHZ-11A – Engineered for extreme conditions. Available with ATEX/IECEx certifications upon request.
Customized materials, ranges, and outputs to meet your exact process requirements.
