LEDAER UFZ-4 Series
Heavy-Duty Float-Type Level Gauge: The Robust Standard for Massive Storage Tanks
📌 Overview

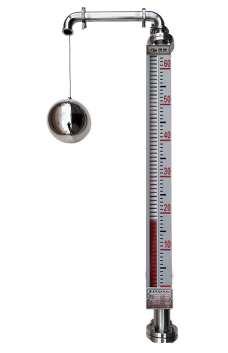

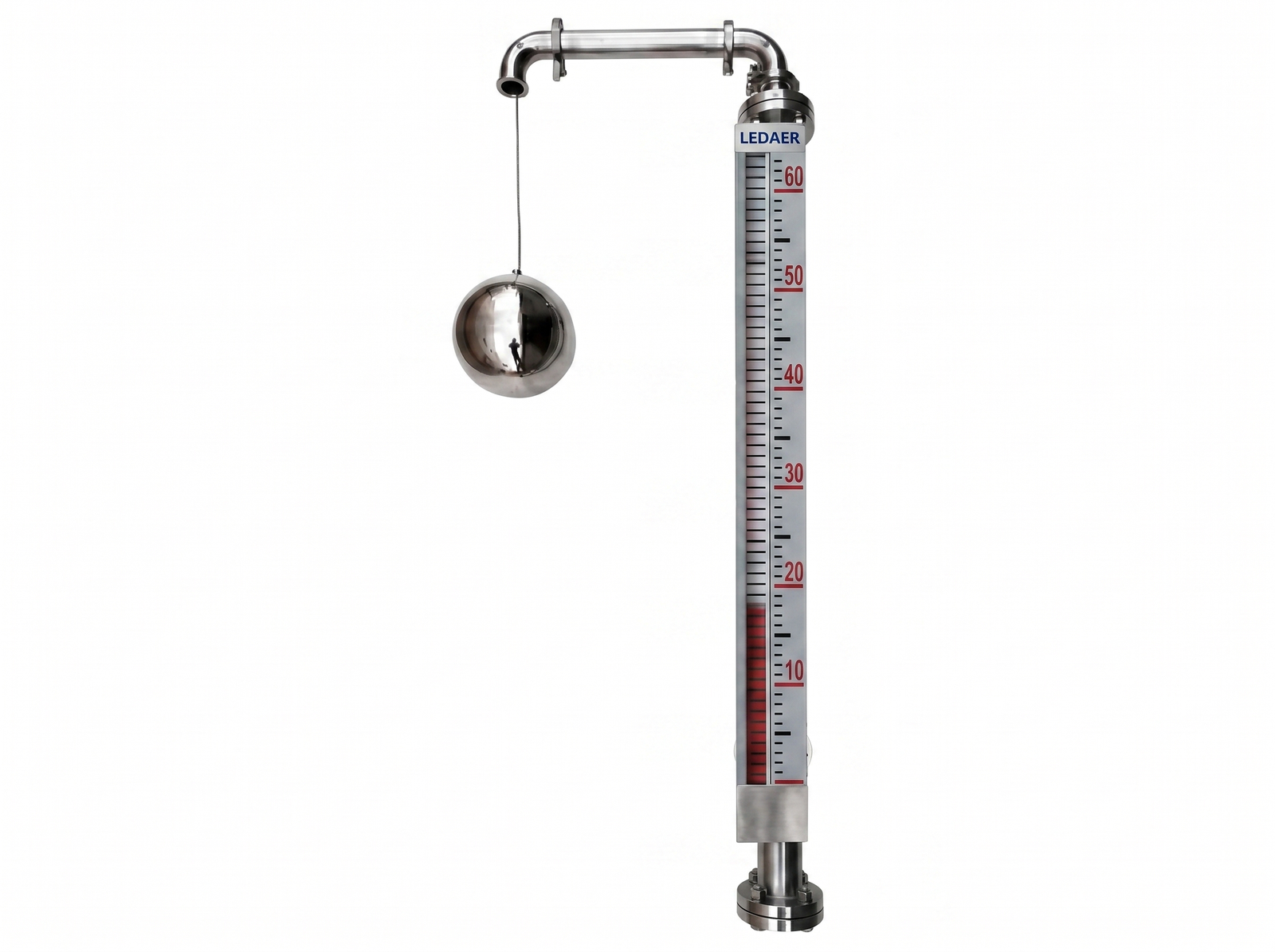

The UFZ-4 Series is a classic mechanical level measurement solution specifically designed for large-scale storage tanks. By utilizing a high-buoyancy float connected via a stainless steel wire rope and pulley system to a counterweight, it provides a real-time, highly visible reading on a vertical scale. It is the preferred choice for massive tanks where electronic sensors may be impractical or cost-prohibitive.
✨ Key Features
Extreme Measuring Range
Standard measurement up to 20 meters, making it ideal for large oil depots and tall silos.
Zero Power Consumption
Fully mechanical operation ensures monitoring during power outages and inherent safety in hazardous areas.
Highly Visible Display
Large, clear scale board with a magnetic pointer or flip-column display readable from a distance.
Robust Materials
Available in SS304, SS316, or PTFE-lined configurations to withstand aggressive media.
📊 Technical Specifications
| Parameter | Value |
|---|---|
| Measuring Range | 0 to 20m |
| Accuracy | ±10mm (Flip-column) / ±20mm (Pointer) |
| Working Pressure | ≤ 4.0 MPa (High pressure versions available) |
| Working Temperature | ≤ 250°C |
| Material Options | SS304, SS316, SS304+PTFE, SS316+PTFE |
| Protection Grade | IP65 – IP68 |
| Explosion-proof | Exi II CT4-CT6 Ga / Exd II CT4-CT6 Gb |
🏭 Typical Applications
Crude oil, fuel oil, and asphalt storage tanks.
Large reservoirs, water towers, and wastewater basins.
Bulk storage for lubrication oils and chemical reagents.
Large-volume pulp storage and chemical recovery tanks.
Why Choose LEDAER UFZ-4?
Time-tested mechanical design providing reliable performance for decades in heavy industry.
Inherently safe design requiring no electrical power, ideal for high-risk explosion zones.
From crude oil to wastewater, we provide material solutions tailored to your medium.
Maximum Precision and Reliability for Global Bulk Storage Operations.
