Industrial Point Level Switches
The Ultimate Selection Guide for Liquid & Solid Level Detection [cite: 602, 603]
📌 Overview
Point Level Switches are essential safety components used to detect a specific liquid or solid level to prevent overflows, dry-running of pumps, or material shortages[cite: 604]. Our range covers scenarios from simple water tanks to viscous slurries and heavy-dust silos[cite: 605].
📊 Quick Selection Matrix
| Product Series | Model(s) | Best Application [cite: 607] |
|---|---|---|
| Magnetic Float | UQK-01/02/03 | Marine, pump stations, industrial oil tanks |
| Vibrating Tuning Fork | UYC-10/20 | Food & Beverage, Pharmaceuticals, Water Treatment |
| Rotary Paddle | UZX-10 | Grain silos, cement tanks, hopper bins |
| RF Admittance | UMF/K | Asphalt, heavy oil, concentrated slurry |
| Multi-Point Float | UQK-L Series | Chemical storage, pump automation |
| Vibrating Rod | UDB Series | Powders, grains, clog-prone large particles |
🔍 Detailed Product Profiles

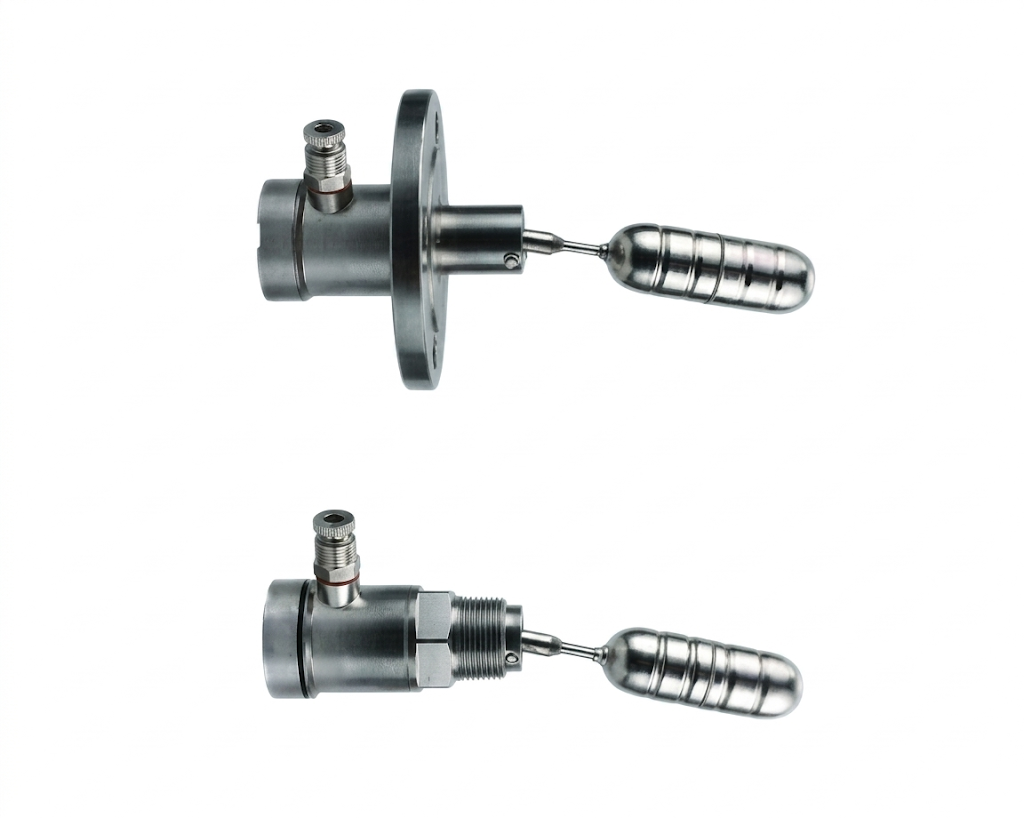

Best Use: Marine, pump stations, and industrial oil tanks[cite: 610].
Performance: High-buoyancy float triggers a microswitch via magnetic coupling, ensuring zero leakage[cite: 612].
Protection: Rated IP68 for outdoor or submerged use[cite: 613].

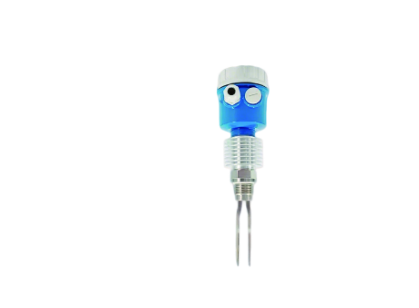

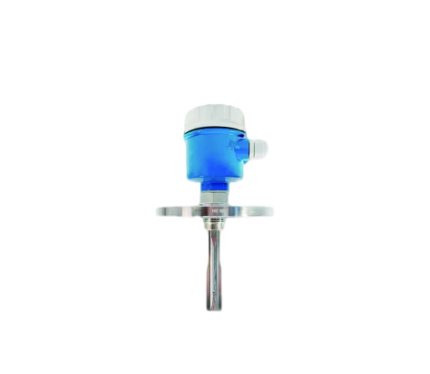

Best Use: Food & Beverage, Pharma, and Water Treatment[cite: 615].
Performance: Piezoelectric vibration triggers alarms upon contact[cite: 616, 617].
Benefit: Unaffected by dielectric constant or turbulence[cite: 618].

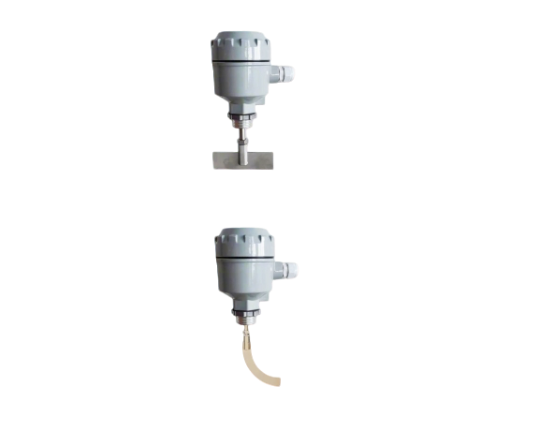

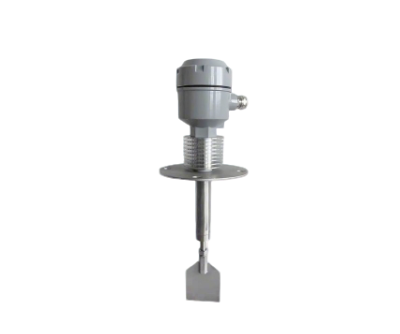

Best Use: Grain silos, cement tanks, and plastic hoppers[cite: 620].
Performance: Low-speed motor stops when paddle is obstructed by solids[cite: 621, 622].
Benefit: Rugged design and easy troubleshooting[cite: 623].

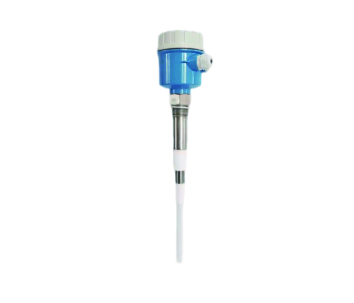

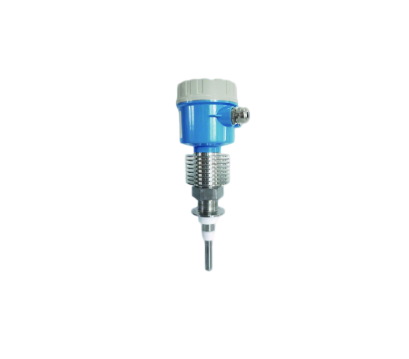

Best Use: Asphalt, heavy oil, and viscous slurries[cite: 625].
Performance: “Active Shield” design distinguishes between real levels and buildup[cite: 626].
Benefit: The ultimate solution for sticky materials[cite: 627].

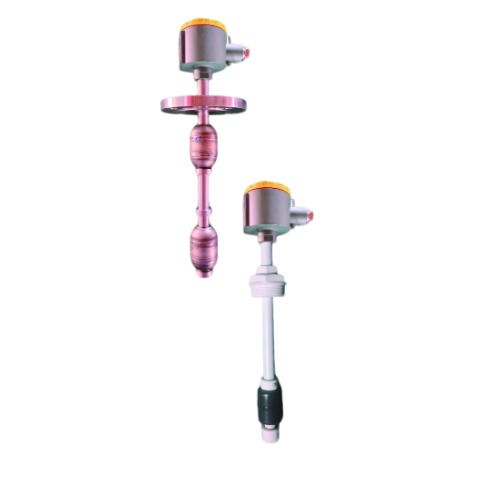

Best Use: Multi-level control in chemical and pump automation[cite: 629].
Performance: Single probe manages multiple alarm points via reed switches[cite: 630].
Benefit: Monitors up to 6 meters with one single installation[cite: 632].

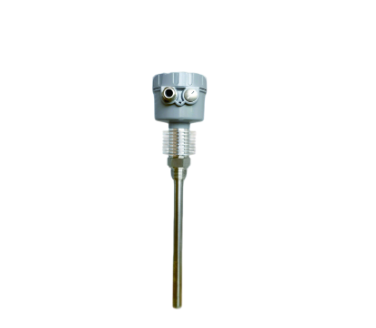

Best Use: Powders and grains prone to clogging or bridging[cite: 634].
Performance: Smooth single-rod design prevents material jamming between sensors[cite: 637, 638].
Benefit: Superior anti-bridging capabilities for large particles.
📋 General Technical Specifications
| Parameter | Value [cite: 641, 643, 644] |
|---|---|
| Output Signal | Relay Contact (SPDT/DPDT), PNP/NPN, or 2-wire |
| Process Temp | Standard -40°C to +800°C (with extensions) |
| Wetted Materials | SS304, SS316, PTFE, or Ceramic coatings |
| Explosion-Proof | Certified Exia II CT4-6 or Exd II CT4-6 |
Why Choose LEDAER Switches?
Available with ceramic sensors for extreme heat environments up to +800°C.
RF Admittance “Active Shield” ignores buildup, ensuring accuracy in viscous media.
Full Exia and Exd certifications across the entire point level switch range.
The Standard for Overflow Protection & Safe Process Automation.
