LEDAER UCB Series
Submersible Hydrostatic Level Transmitter: Accurate and Reliable Measurement for Deep & Underground Apps
📌 Overview
The UCB Series utilizes the principle of hydrostatic pressure to provide accurate and reliable liquid level measurement. By sensing the static pressure proportional to the liquid height, it converts the data into a standard 4-20mA signal. This sensor is widely recognized for its ease of installation, especially in deep-well or underground applications where top-mounting is required.
✨ Key Features & Advantages
Flexible Configurations

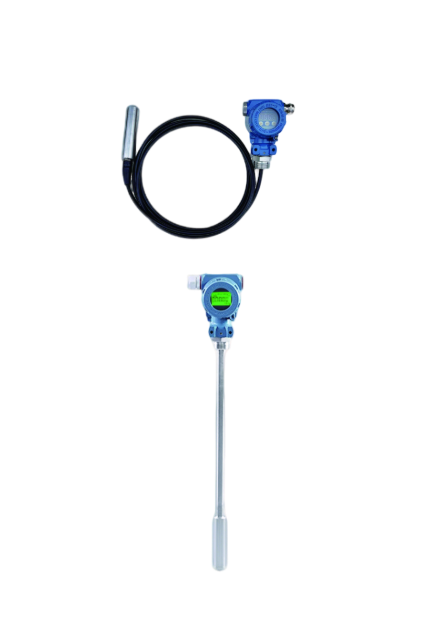

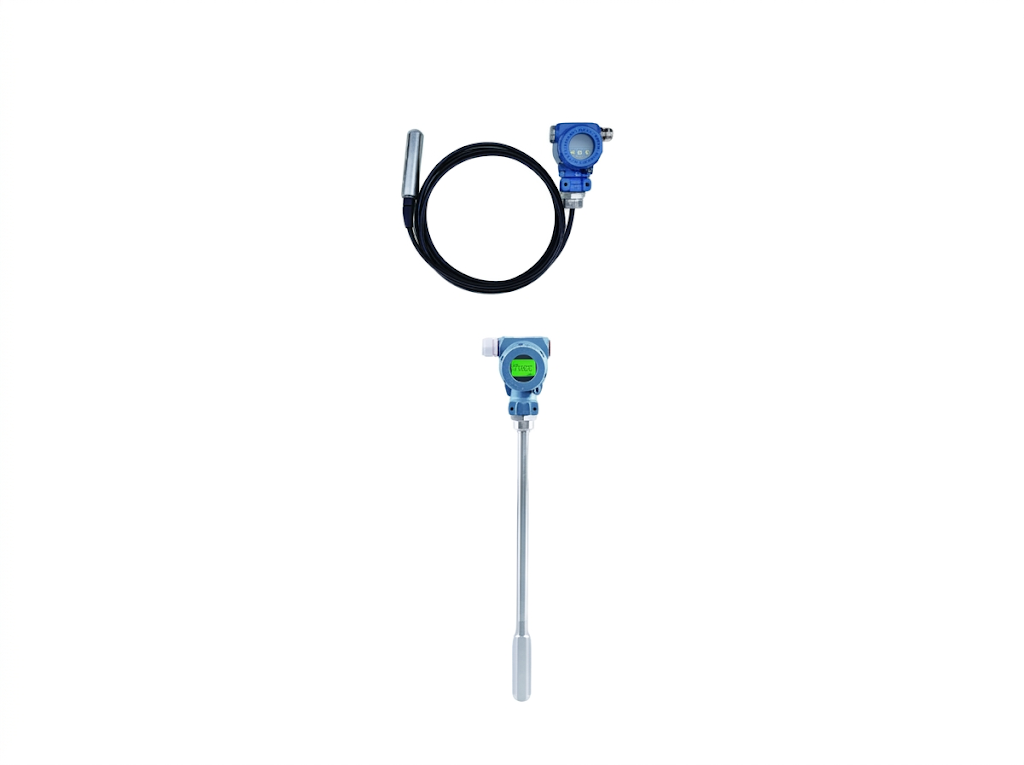

Available in Cable-Submersible (deep wells) and Rigid Rod (tanks) structures.
High Precision
Offered in accuracy classes of 0.2 and 0.5 for precise industrial control.
Thermal Adaptability
Designed to operate in medium temperatures ranging from -20°C to 180°C.
Robust Materials
Wetted parts in SS304, SS316, or PTFE-lined versions to resist aggressive chemicals.
📊 Technical Specifications
| Parameter | Value |
|---|---|
| Measuring Range | 0.3m to 200m |
| Accuracy Class | 0.2 / 0.5 |
| Process Pressure | Up to 10 MPa (for rod types) |
| Signal Output | 4-20mA + HART, RS485 Modbus, Wireless options |
| Explosion-Proof Ratings | Exia II CT4-CT6 / Exdb II CT4-CT6 |
| Protection Grade | Up to IP68 (Fully Submerged) |
🏭 Ideal Applications
Deep wells, reservoirs, and sewage treatment basins.
Underground fuel tanks and acidic chemical storage.
High-temperature reactor level monitoring and automated control.
Why Choose LEDAER UCB?
Supports HART, Modbus, and Wireless output for seamless IoT and industrial integration.
From simple water basins to complex high-pressure reactors, we provide the right mounting solution.
IP68 submersible protection ensures absolute integrity even in the most demanding liquid depths.
Reliable measurement for depths up to 200m and temperatures up to 180°C.
