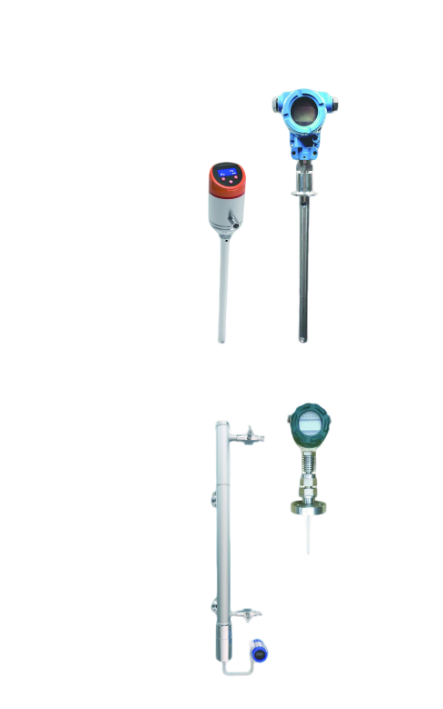

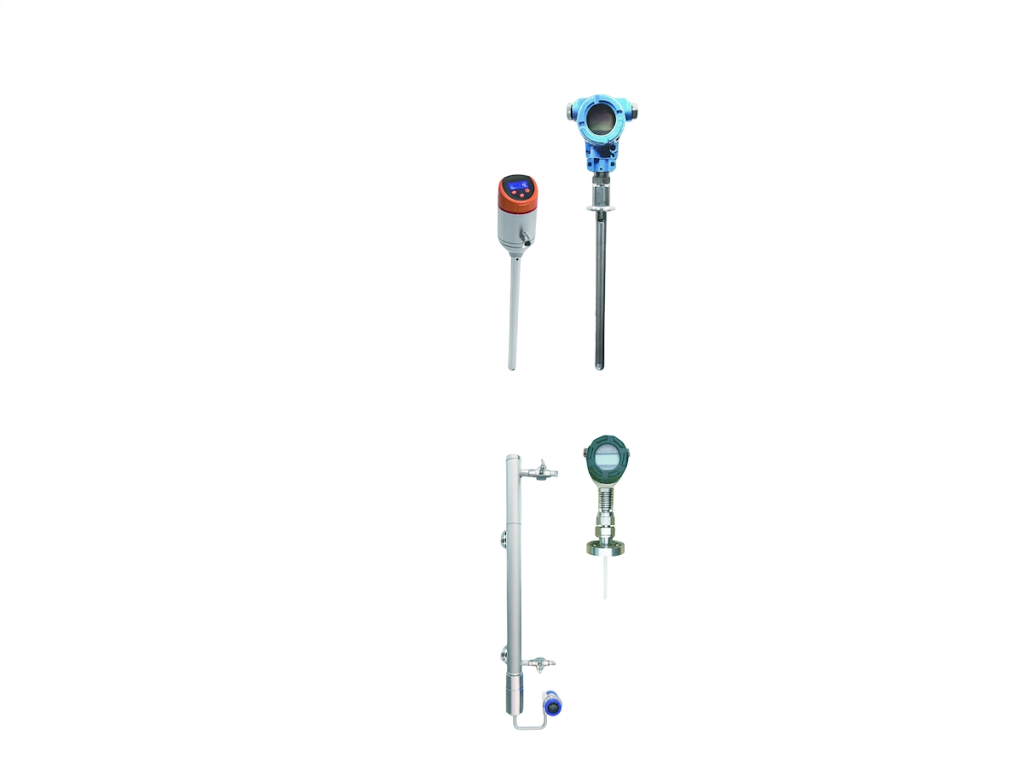

LEDAER UMD Series
Capacitance Level Transmitter: High-Performance Continuous Measurement for Challenging Environments
📌 Overview
The UMD Series is a high-performance continuous level measurement solution designed for challenging industrial environments. By measuring the change in capacitance between the probe and the container wall, it provides stable and accurate level data. With its “no moving parts” design and exceptional pressure resistance, it is a reliable alternative where mechanical float-based sensors might fail.
✨ Key Features & Advantages
Extreme Pressure Duty
Specially engineered to withstand working pressures up to 32MPa for high-pressure process vessels.
Broad Temp Range
Operates reliably from cryogenic -196°C up to 250°C.
Maintenance-Free
Solid-state sensor with no mechanical wear, significantly reducing long-term costs.
High Stability
Low drift rate of ≤ 0.2% FS/year ensures consistent measurement over time.
📊 Technical Specifications
| Parameter | Value |
|---|---|
| Measuring Range | Rod type 300-5000mm; Cable type 2-20m |
| Accuracy | 0.5 class |
| Signal Output | 4-20mA with optional HART or RS485 Modbus |
| Probe Options | Rigid Rod or Flexible Cable (with optional PTFE coating) |
| Explosion-Proof | Exia II CT4-CT6 / Exdb II CT4-CT6 |
| Protection Grade | IP65 |
🏭 Ideal Applications
High-pressure separators and LPG/LNG storage tanks.
Corrosive acid/alkali tanks and high-temperature reactors.
Boiler steam drum level monitoring with extreme pressure resistance.
Reliable continuous level tracking in pressurized process vessels.
Why Choose LEDAER UMD?
From -196°C for LNG to 250°C for reactors, we cover the full thermal spectrum.
The “no moving parts” solid-state sensing avoids mechanical fatigue in high-vibration processes.
Available PTFE coatings provide an impenetrable barrier against aggressive acid and alkali media.
Engineered for Pressure up to 32MPa and Temperatures down to -196°C.
