LEDAER UQD Series

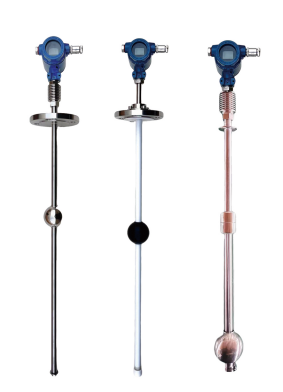

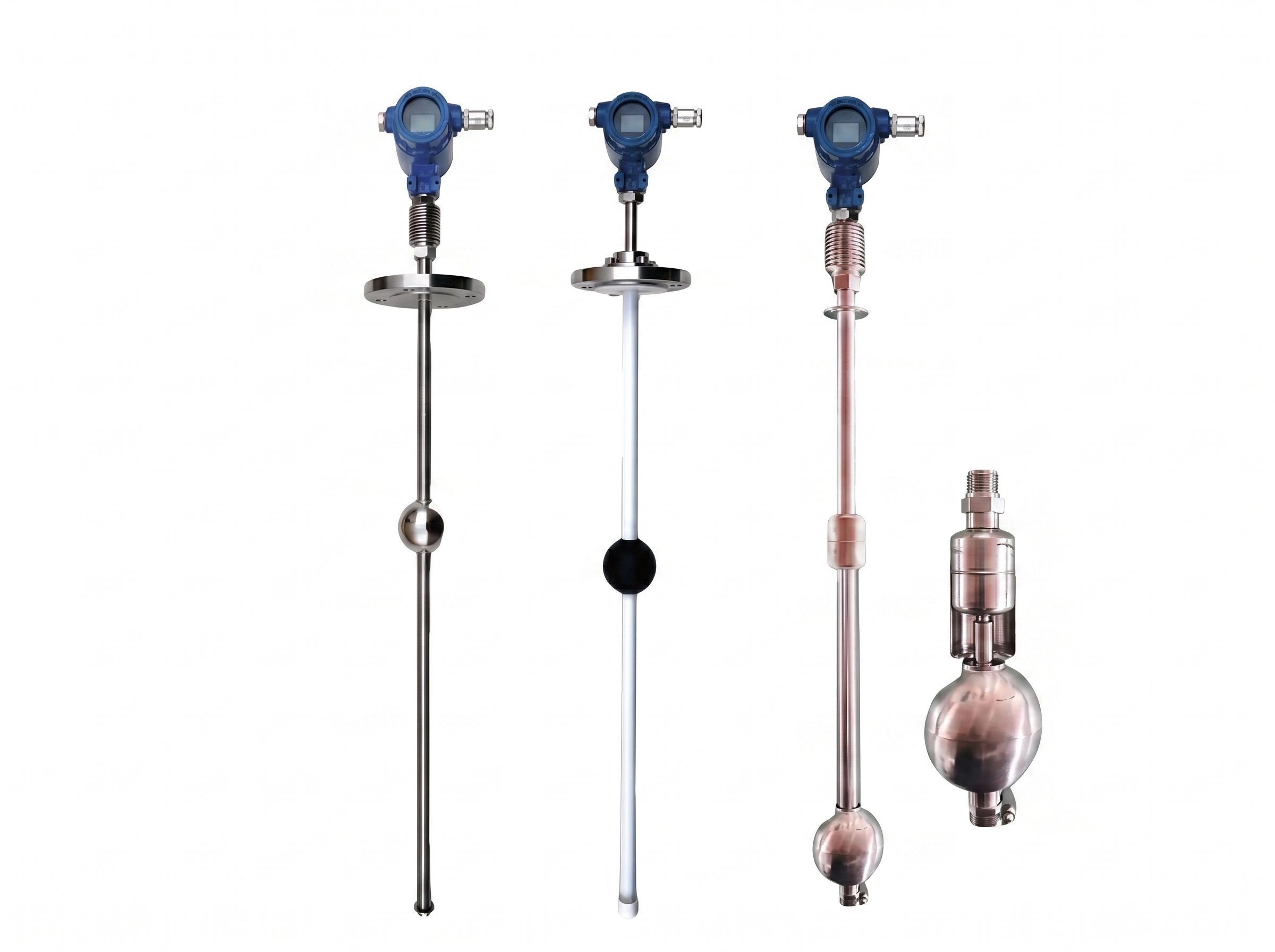

Magnetic Float Level Transmitter (Insert-In Type): The Industry Standard for Versatile Liquid Monitoring
๐ Overview [cite: 441]
The UQD Series is a classic, highly reliable liquid level transmitter designed for top-mounting on tanks and vessels. It utilizes a magnetic float that travels along a guide tube, triggering a continuous resistive signal that is converted into a standard 4-20mA output. Its simple, robust construction makes it an industry standard for water treatment, fuel management, and general industrial liquid monitoring[cite: 444].
โจ Key Features
All-In-One Measurement
Combines sensing and transmission, providing a continuous signal from 0 to 6,000mm[cite: 446].
Material Compatibility
Available in SS304, SS316, PTFE-lined, PP, and PVC for diverse chemical media[cite: 447, 448].
Extreme Reliability
No complex mechanical linkages ensure a long service life with minimal maintenance[cite: 449].
Explosion-Proof
Certified Exia II CT4-6 and Exd II CT4-6 for hazardous oil and gas zones[cite: 450].
๐ Technical Specifications
| Parameter | Value [cite: 451] |
|---|---|
| Measuring Range | 0 to 6,000 mm [cite: 452] |
| Accuracy | ยฑ10mm (Standard) / ยฑ5mm (High Precision) [cite: 453] |
| Signal Output | 2-wire 4-20mA + HART, RS485 Modbus [cite: 454] |
| Process Pressure | Up to 2.5 MPa [cite: 455] |
| Medium Density | โฅ 0.45 g/cmยณ |
| Protection Grade | IP65 / IP68 (Submersible available) [cite: 457] |
๐ญ Application Environments [cite: 458]
Monitoring chemical dosing tanks and wastewater basins[cite: 459].
Real-time level tracking for industrial oil and fuel tanks[cite: 460].
Level control for sanitary storage vats with SS316/PTFE options[cite: 461].
Fuel and ballast tank monitoring in demanding sea conditions[cite: 462].
๐ ๏ธ Customization Options [cite: 463]
- Mounting: Choice of Flange or Threaded connections[cite: 464].
- Display: Optional local LCD display for convenient on-site readings[cite: 465].
- Anti-Corrosive: Specialized full PTFE/PP construction for strong acids and alkalis[cite: 466].
Why Choose LEDAER UQD?
Simple, robust designs that have served global industries for decades.
From high-grade steels to specialized plastics, we adapt to your specific medium.
Rigorous Exia/Exd certifications prioritize plant and operator safety.
Continuous, Reliable Monitoring for Industrial Fluid Management.
