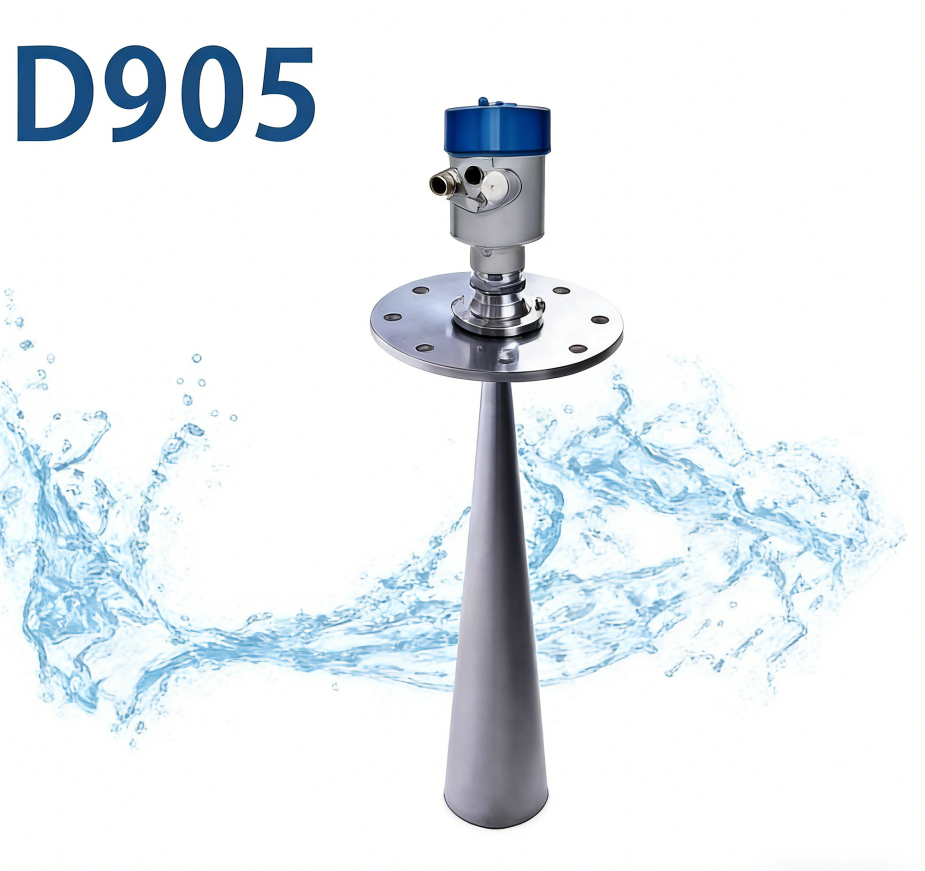

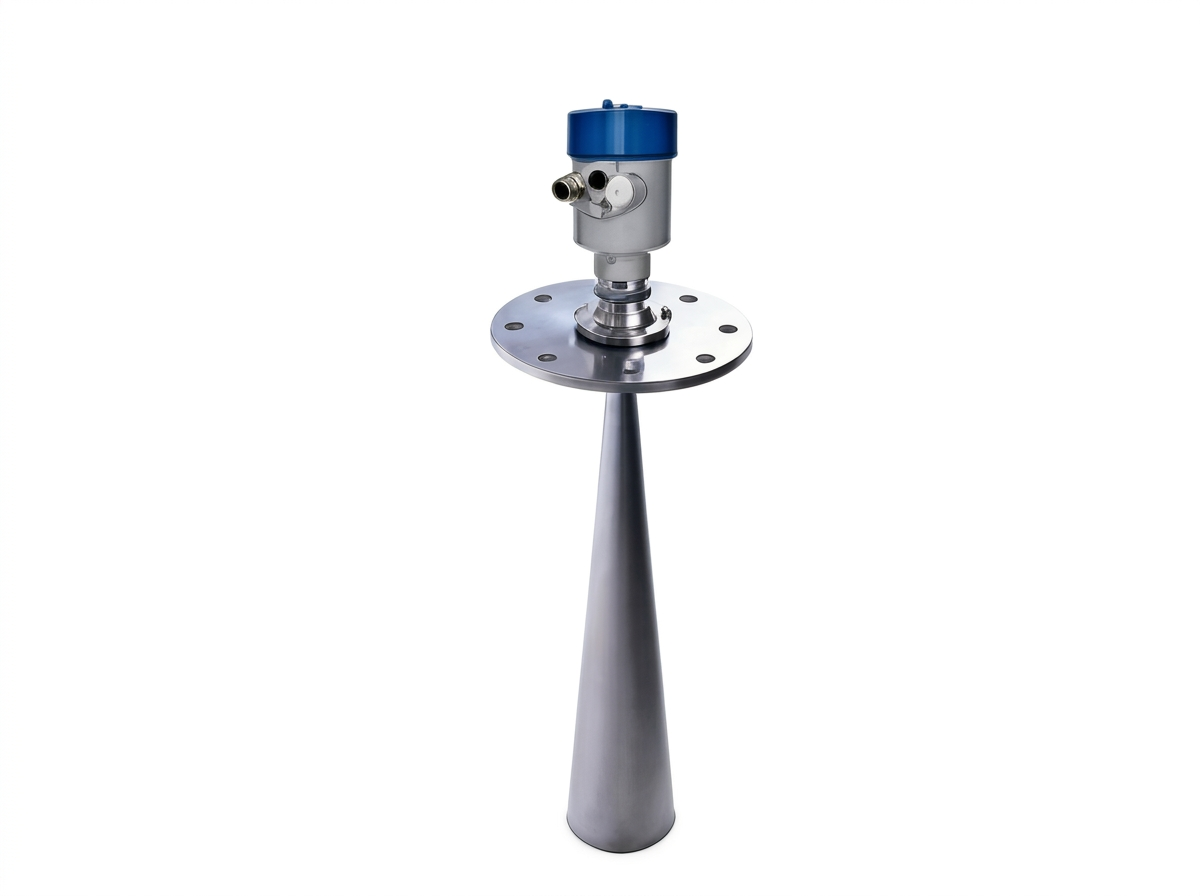

LEDAER D905
26GHz Radar Level Transmitter: Designed for High-Capacity Storage & Challenging Thermal Conditions
📌 Brief Introduction
The LEDAER D905 is a versatile 26GHz radar level transmitter designed for high-capacity storage and challenging thermal conditions[cite: 180]. With a significant 70-meter measuring range and an extended antenna structure, it provides stable non-contact measurement for both solids and liquids in large-scale industrial environments[cite: 181].
🔍 Product Details
The D905 is engineered to bridge the gap between standard range and extreme long-range sensing[cite: 183]. Its hardware is optimized to handle high-temperature vapors and dust clouds, ensuring the 26GHz signal remains sharp over long distances[cite: 184]. The extended horn antenna is particularly effective at capturing reflections from materials that tend to clump or crystalize, providing reliable inventory data for tall, heated vessels[cite: 185].
📋 Technical Specifications
| Parameter | Value |
|---|---|
| Brand | LEDAER [cite: 187] |
| Frequency | 26GHz [cite: 188] |
| Measuring Range | 0 – 70m [cite: 189] |
| Accuracy | ±3mm [cite: 190] |
| Process Temp | -40°C to 250°C [cite: 191] |
| Pressure Range | -0.1 to 0.3 MPa [cite: 192] |
| Process Connection | Flange (Customizable) [cite: 193] |
| Output | 4-20mA / HART / RS485 Modbus [cite: 194] |
| Protection Grade | IP67 / Exia II CT6 Ga (Optional) [cite: 195] |
✨ Product Advantages
Superior Thermal Resistance
Built to maintain accuracy in high-heat processes (up to 250°C) without complex external cooling[cite: 197].
Extended Reach
The 70-meter range allows for deployment in the vast majority of tall industrial storage silos[cite: 198].
Signal Clarity
High-frequency pulses and a tuned antenna filter out noise from steam, dust, and condensation.
Low Maintenance
Non-contact design and robust antenna housing prevent buildup and mechanical wear[cite: 200].
🏭 Application Scenarios
Monitoring raw materials in high-dust, high-heat production environments[cite: 202].
Precision level tracking for large-scale vessels involving exothermic reactions[cite: 203].
Measuring bulk materials in proximity to high-heat processing zones[cite: 204].
Reliable level sensing for hot, viscous materials in large tanks[cite: 205].
Why Choose LEDAER?
LEDAER’s D905 performs where standard sensors fail, built for the rigors of heavy industry[cite: 207].
We assist with beam-angle calculations to avoid internal silo structures over long ranges[cite: 208].
Rigorously calibrated to ensure ±3mm accuracy remains constant even at 70 meters[cite: 209].
Precision Sensing for the Largest and Hottest Vessels.
